ระบบแจ้งเหตุเพลิงไหม้
CONTROL PANEL : ONYX Series

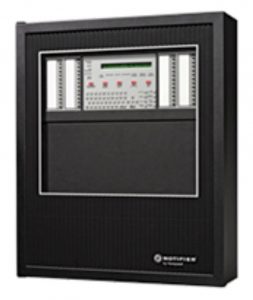

NFS2-3030 : Fire Alarm Control Panel
The NFS2-3030 intelligent fire alarm control panel is part of NOTIFIER’s UL listed ONYX Series. The NFS2-3030 supports over 3,000 intelligent devices on ten Signaling Line Circuits, perfect for protecting large scale applications.
Features & Benefits:
- Large 640-character LCD backlit display or displayless
- Networkable with NOTI-FIRE-NET and ONYXWorks compatible up to 200 nodes for NFN
- Built-in degraded mode option
- Optional integrated Digital Voice Command (DVC)
- EIA-485 annunicators, including custom graphics
- FM6320 approved gas detection system
- Listings: Releasing, Mass Notification, Seismic Certified, Marine Approved

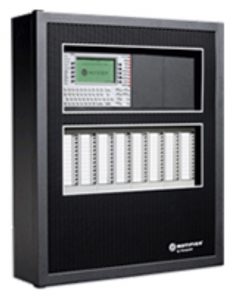

NFS2-640 : Fire Alarm Control Panel
The NFS2-640 intelligent fire alarm control panel is part of NOTIFIER’s UL listed ONYX Series. It’s designed specifically for mid-size applications, and easily expanded via NOTIFIER’s intelligent fire alarm network.
Features & Benefits:
- ONYX Intelligent Sensing – nine levels of sensitivity, drive compensation and maintenance alert, and auto detector test
- Fully field programmable with 80-character display
- Optional Integrated Digital Voice Command with eight channels of standard quality audio or one channel of high quality audio and firefighter telephone on a single cable
- Listings: Releasing, Mass Notification, Seismic Certified, Marine Approved

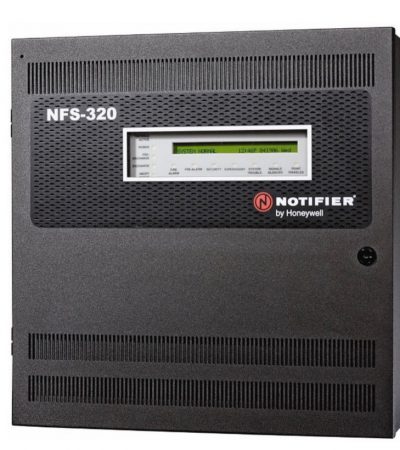

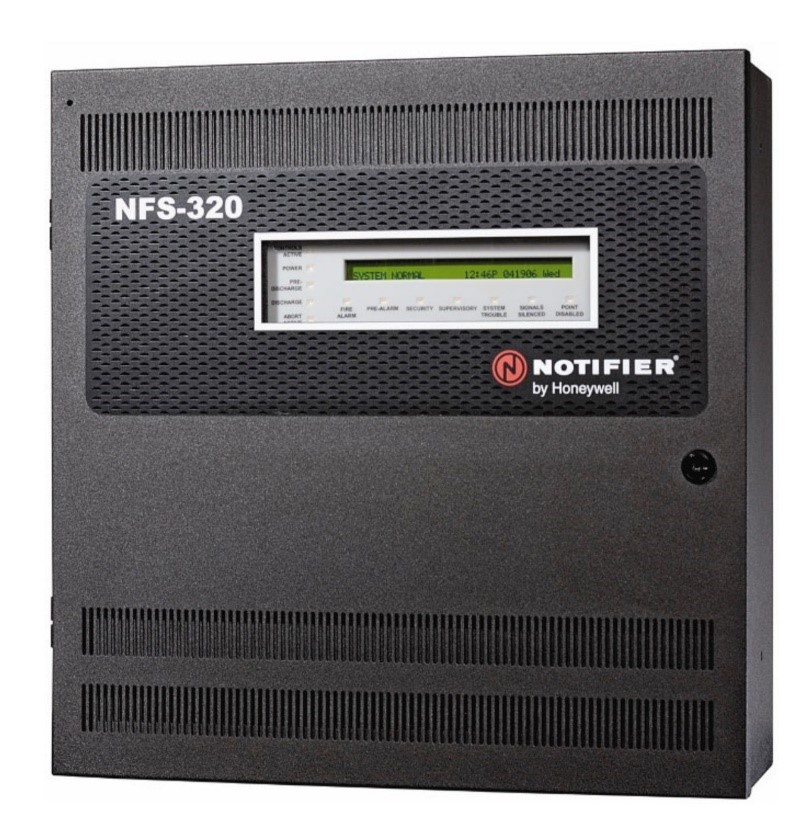

NFS-320 : Fire Alarm Control Panel
The NFS-320 and NFS-320R (Same as NFS-320 but in red enclosure) intelligent fire alarm control panels are part of NOTIFIER’s UL listed ONYX Series. It’s designed specifically for small applications with features that minimize installation time, enable faster response times, and simplify maintenance and usability.
Features & Benefits:
- Fully field programmable
- Removable chassis design for easy installation and service
- Direct connect to NOTIFIER FirstCommand™ Emergency Communications System
- Networkable with NOTI-FIRE-NET and ONYXWorks compatible up to 200 nodes for NFN
- Optional IP or GSM Communicator
- Listings: Releasing, Mass Notification, Seismic Certified, Marine Approved
CONTROL PANEL : Conventional Releasing

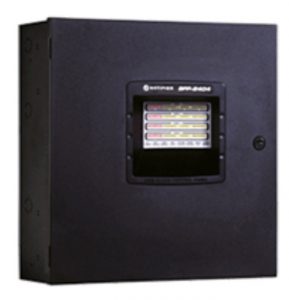

SFP-2402 and SFP-2404 :
Fire Alarm Control Panel
The SFP-2402 and SFP-2404 are UL Edition listed conventional fire alarm control panels with two alarm initiating zones and four initiating zones respectively. The Notification Appliance Circuit (NAC) protocol can silence audible devices while strobes continue to flash, using a single pair of wires.
Features & Benefits:
- Compatible with conventional input devices such as two- and four-wire smoke detectors, pull stations, waterflow devices, tamper switches and other normally-open contact devices
- 2-zone: 2 Class B/Style B zones; 1 Class B/Style Y NAC
- 4-zone: 4 Class By/Style B zones (Class A/Style D optional); 2 Class B/Style Z (Class A/Style Z optional)
- 3 Amps (expandable to 6.0 AMPS on 4-zone) with programmable strobe synchronization

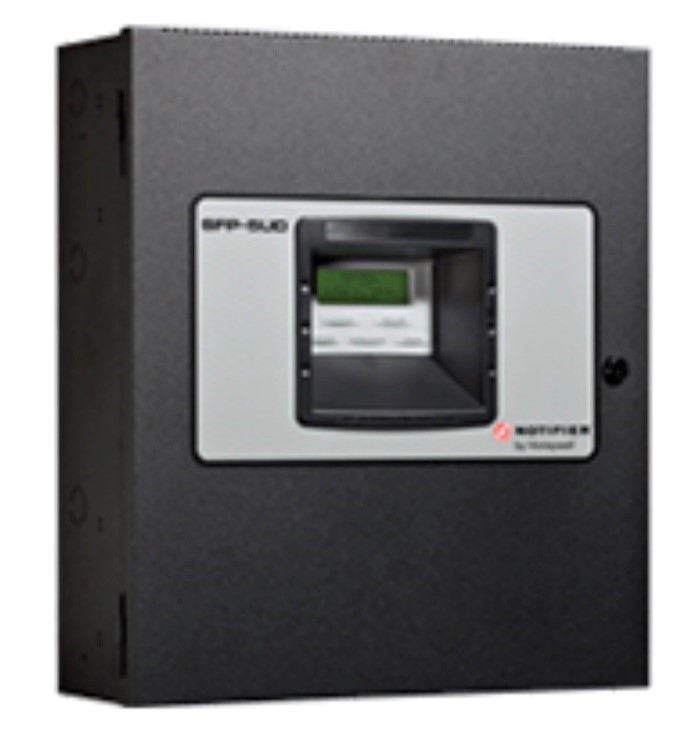

SFP-5UD and SFP-5UDR :
Fire Alarm Control Panel
The SFP-5UD and SFP-5UDR (red backbox) is a UL listed, 5-zone fire alarm control panel with a built-in digital alarm communicator transmitter (DACT) and remote site upload/download capability.
Features & Benefits:
- Five Class B Initiating Device Circuits (IDCs), Class A optional with N-CAC-5X converter module
- Four Class B NACs rated at 2.5 amps, Class A optional with N-CAC-5X converter module
- 3.0 amps total system power
- Up to eight ANN-BUS devices (such as LCD annunciators)
- Serial or parallel printer interface
- 80-character LCD display
- Optional IP Communicator
SFP-10UD and SFP-10UDR: Fire Alarm Control Panel
The SFP-10UD, SFP-10UDR (Red backbox), are a UL listed, 10-zone fire alarm control panel with a built-in digital alarm communicator transmitter (DACT) and remote site upload/download capability.
Features & Benefits:
- Ten Class B Initiating Device Circuits (IDCs), Class A optional with N-CAC-5X converter module (2 required)
- Four Class B NACs rated at 3.0 amps, Class A optional with N-CAC-5X converter module (2 required)
- 7.0 amps total system power
- Up to eight ANN-BUS devices (such as LCD annunciators)
- Serial or parallel printer interface
- 80-character LCD display
